Description

Bidirectional self-priming Belt Driven pumps with side liquid ring, widely used in the nautical sector to empty bilges and transfer liquids such as fresh water, sea water, fuel oil, diesel

A belt-driven pump is designed to operate in places with limited space or where no electrical power is available. An additional bearing makes it possible to withstand the extra radial forces caused by a pulley. A pulley wheel is attached to the end of the shaft. By means of pulley belts, the pump can be driven by a motor mounted next to it rather than on top of it. The pulley head is positioned on the motor stool where the motor would normally be fitted

SCOPE

• Liquid free from solid impurities
• Temperature range of the liquid: from +0 to +70 °C
• Max. suction depth: 6 m.
• Static pressure inside the pump body: 6 bar max

Options:

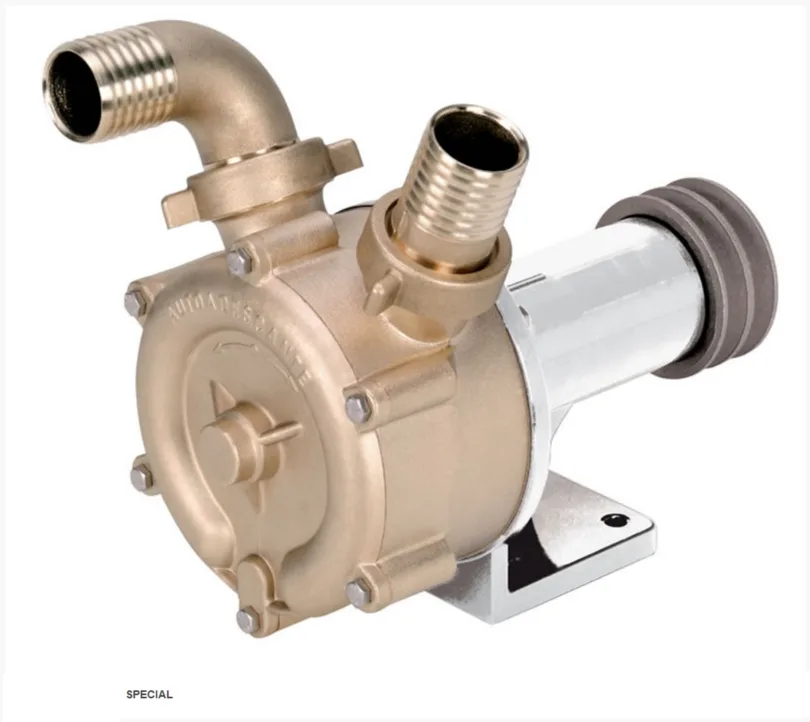

Nautic & Special – with a pulley or bare shaft

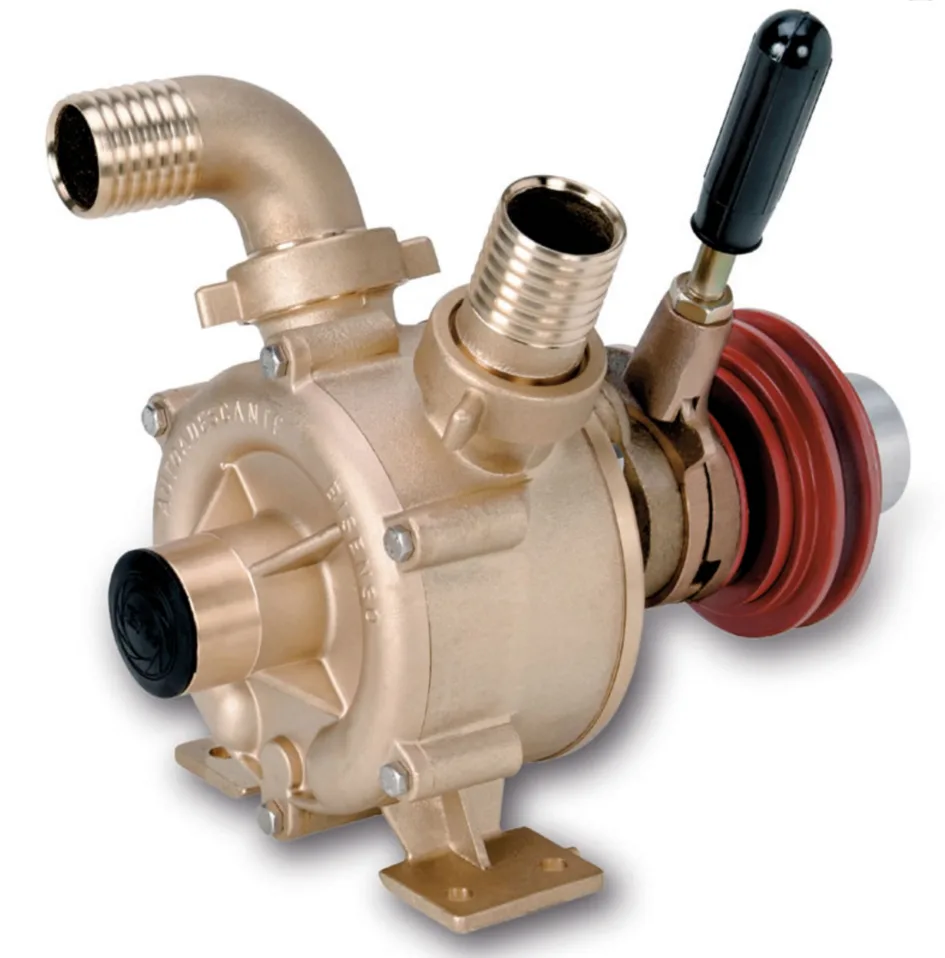

Nautic F Type – manual clutch

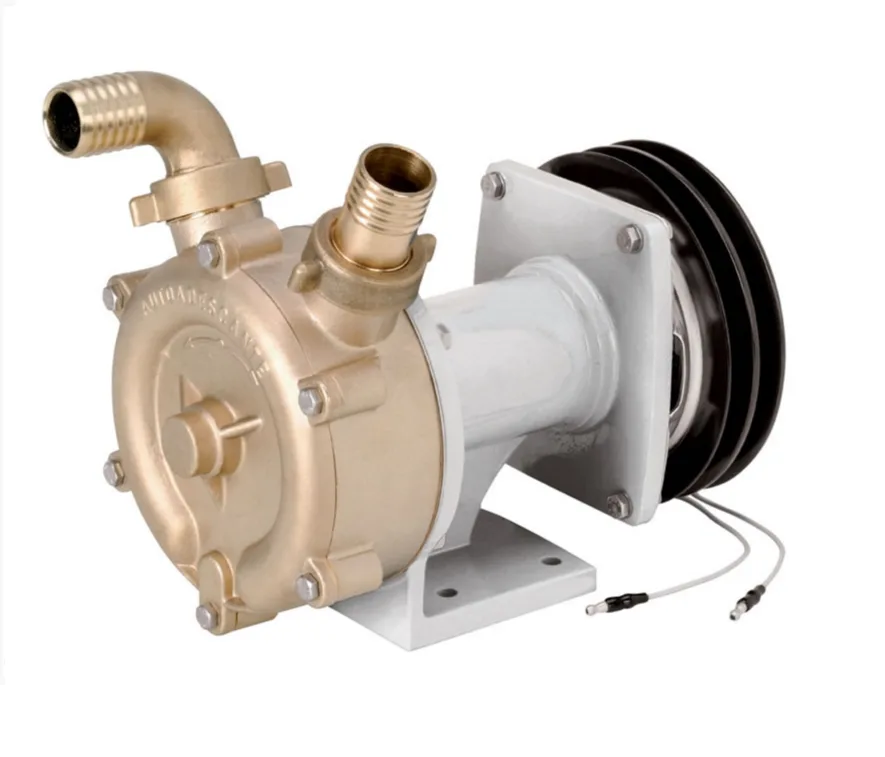

Special FM Type – 12 and 24VDC clutch

Construction features:
Pump body, impeller and pipe fittings: BRONZE
Shaft: AISI 316 stainless steel
Lip seals: special corrosion-proof NBR, (with bronze spring in Nautic model)
Electromagnetic clutch: 12V (FM 12)- 24V (FM 24)

DATA SHEET – CEM Pumps SPECIAL SPECIAL-FM
DATA SHEET – CEM Pumps NAUTIC, NAUTIC F

Thread: BSP (EN 10226-1 – ex ISO 7/1)
