Description

Quick Nautic Boiler range – Calorifier

Quick boasts the widest range of nautical water heaters available on the domestic and foreign market. Quick water heaters are divided into 5 product lines, B3, BX, BXS, BK2 & BK3, which include a wide range of models with tanks from 15 to 200 litres

…wide range of models with tanks from 15 to 200 litres…

Quick Nautic boilers offer several advantages and among these: high-quality materials, heat exchanger with wide exchange surface, the possibility to produce hot water from the electric element, the relief/non-return valve that allows discharging of the water heater in cases of disuse
All the tanks are made in Aisi 316 stainless steel, welded with Argon shielding gas and hence highly resistant to corrosive agents. Thermal insulation is ensured by the injection of high-density polyurethane foam, which grants excellent and long-lasting heat retention properties
External covers are either in stainless steel (BX-BXS series) or in composite material (B3 series). Both materials are long-lasting and resistant. B3 series is particularly resistant to both bumps and the marine environment characteristics, besides being easier to handle during installation

Benefits and features

• High-quality materials
• Heat exchanger with wide exchange surface
• The heat exchanger in AISI 316 stainless steel
• The tank is made in 316 L AISI stainless steel welded with Argon shielding gas and hence highly resistant to corrosive agents
• The thermal insulation is high thickness polyurethane foam injected between the cover and tank giving excellent heat retention properties
• The electrical heating element is made of Incoloy®
• Produces hot water from the electric element, that is fitted with an adjustable safety thermostat
• Relief/non-return vale that allows discharging of the water heater in case of disuse

Optional accessories

• Anti-flare protection – The heating element can be provided with an anodized aluminium case that protects the water heater in potentially explosive environments (ISO 8846)
• Thermostatic mixing valve kit

All Quick water heaters come with a 3-year warranty

Ranges:

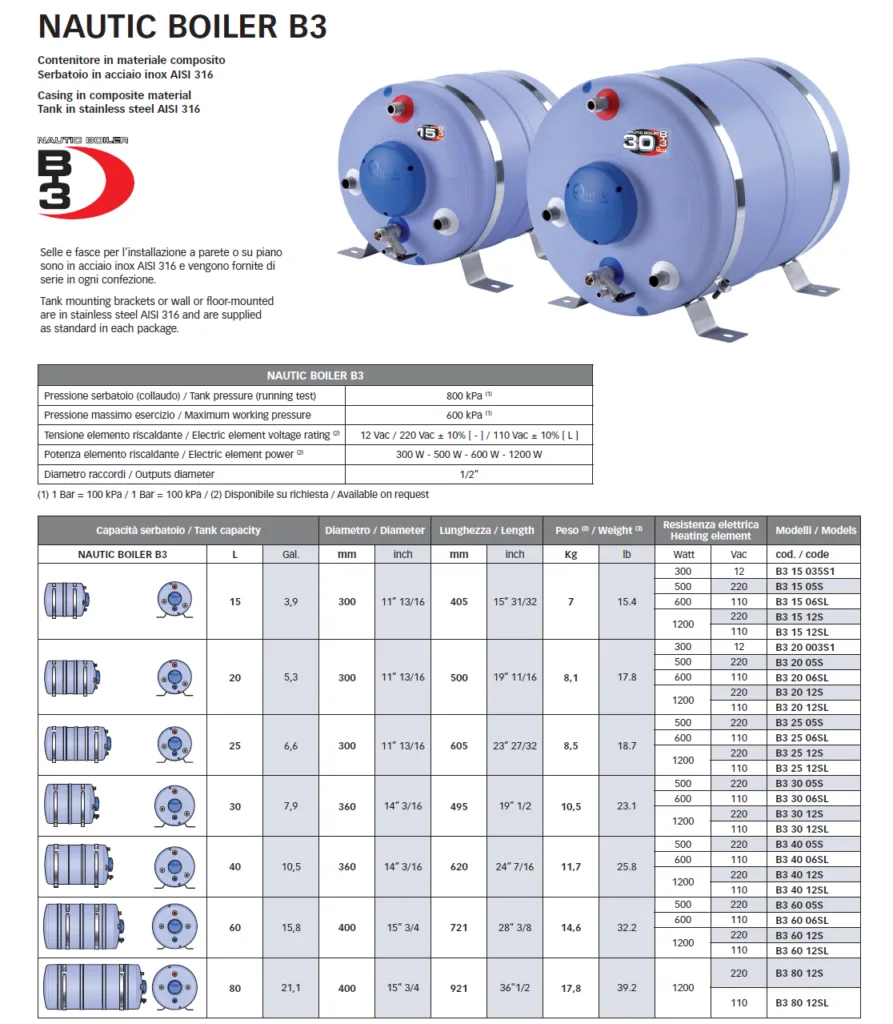

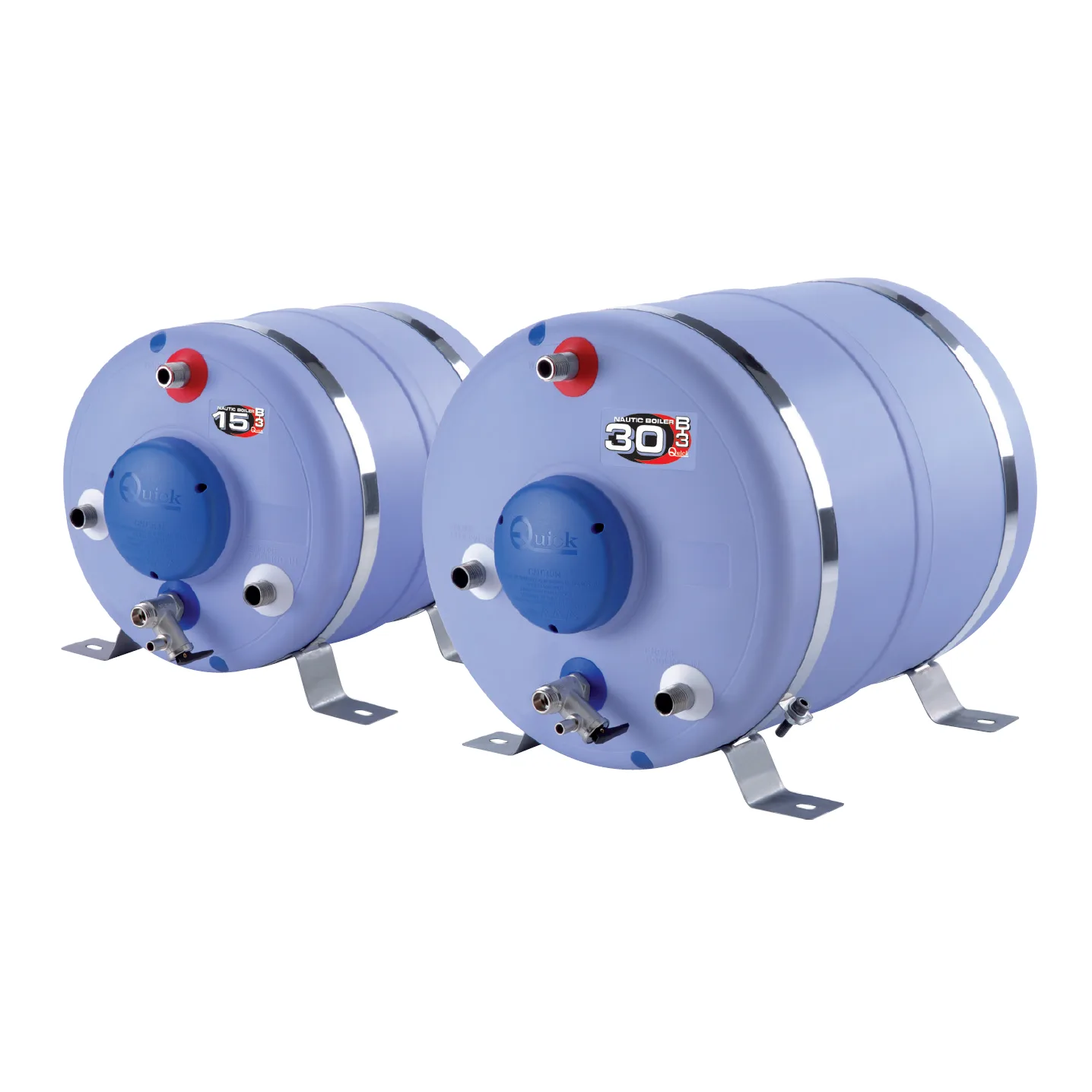

NAUTIC BOILER B3

Casing in composite material. Tank in stainless steel AISI 316. Tank mounting brackets or wall or floor-mounted are in stainless steel AISI 316 and are supplied as standard in each package

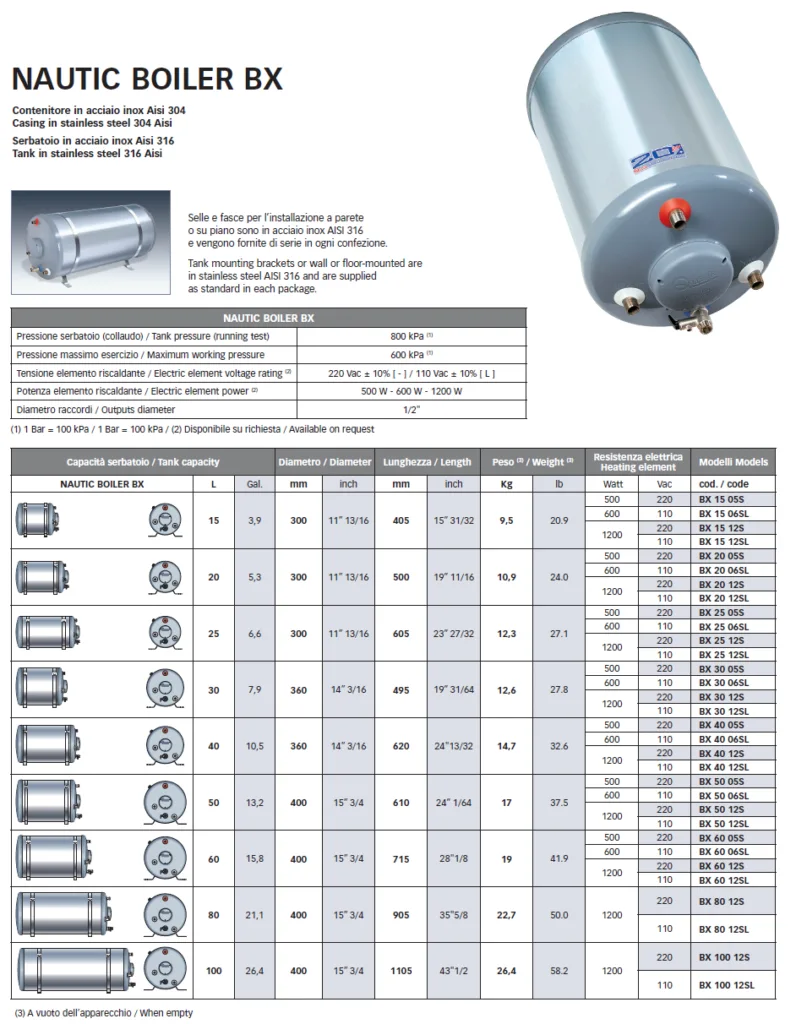

NAUTIC BOILER BX

Casing & Tank in stainless steel 304 Aisi. Tank mounting brackets or wall or floor-mounted are in stainless steel AISI 316 and are supplied as standard in each package

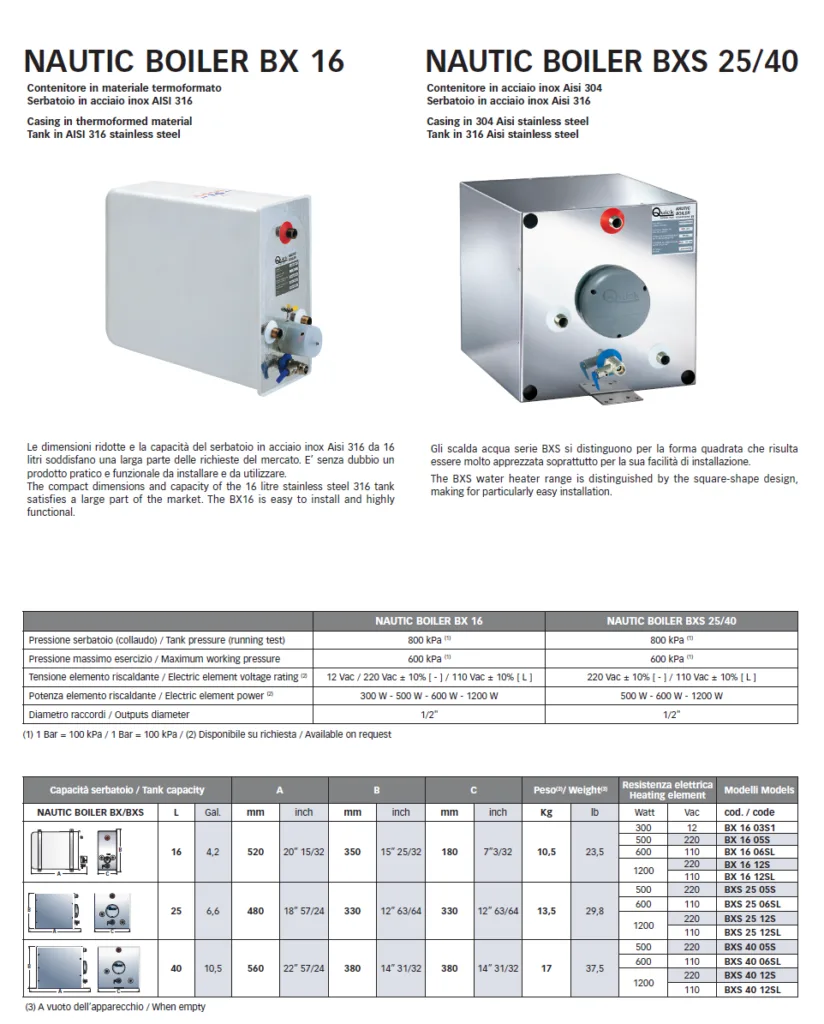

NAUTIC BOILER BX 16

Casing in thermoformed material Tank in AISI 316 stainless steel. The compact dimensions and capacity of the 16-litre stainless steel 316 tank satisfies a large part of the market. The BX16 is easy to install and highly functional

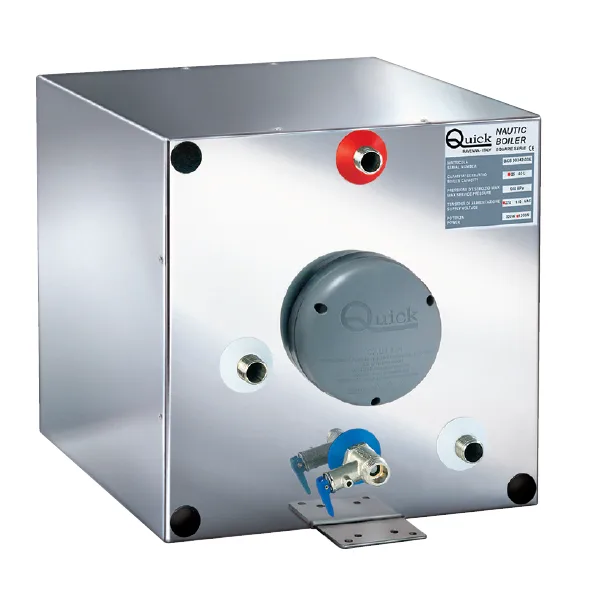

NAUTIC BOILER BXS 25/40

Casing in 304 Aisi stainless steel, Tank in 316 Aisi stainless steel. The BXS water heater range is distinguished by the square-shape design, making for particularly easy installation

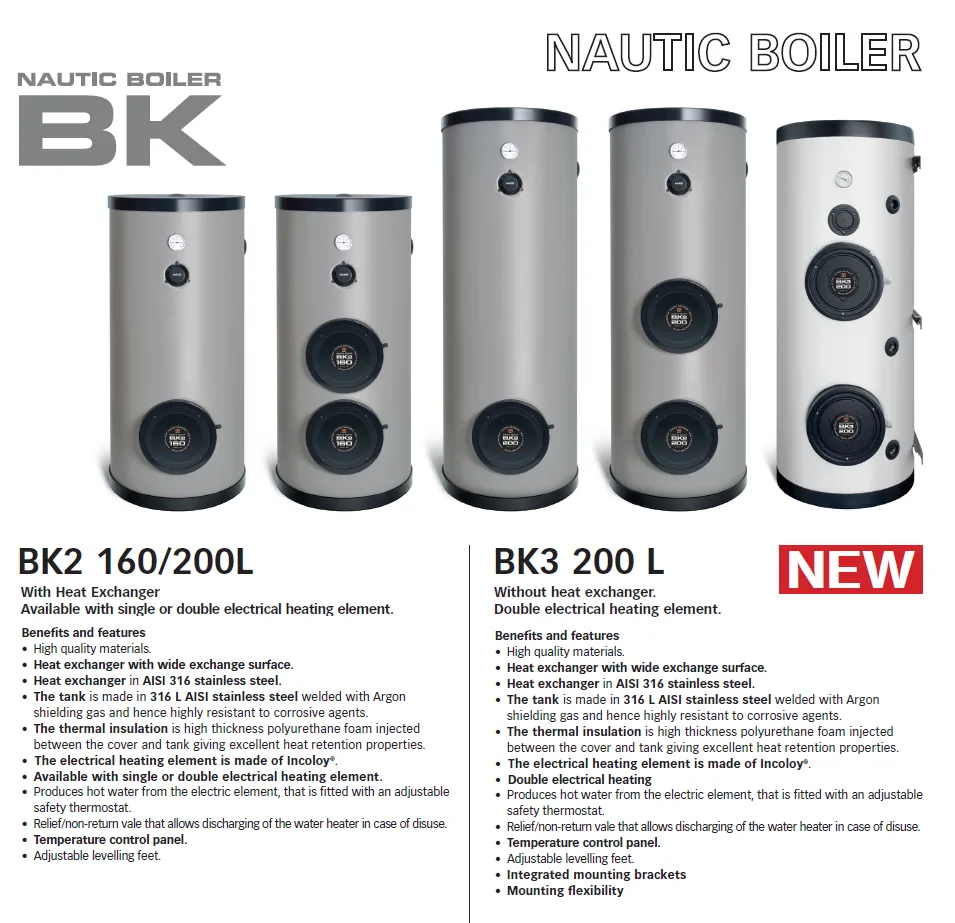

BK2 160/200L

With Heat Exchanger, available with a single or double electrical heating element

Benefits and features

• High-quality materials
• Heat exchanger with wide exchange surface
• The heat exchanger in AISI 316 stainless steel
• The tank is made in 316 L AISI stainless steel welded with Argon shielding gas and hence highly resistant to corrosive agents
• The thermal insulation is high thickness polyurethane foam injected between the cover and tank giving excellent heat retention properties
• The electrical heating element is made of Incoloy®
• Available with a single or double electrical heating element
• Produces hot water from the electric element, that is fitted with an adjustable safety thermostat
• Relief/non-return vale that allows discharging of the water heater in case of disuse
• Temperature control panel
• Adjustable levelling feet

BK3 200 L

Without heat exchanger. A double electrical heating element

Benefits and features

• High-quality materials
• Heat exchanger with wide exchange surface
• Heat exchanger in AISI 316 stainless steel
• The tank is made in 316 L AISI stainless steel welded with Argon shielding gas and hence highly resistant to corrosive agents
• The thermal insulation is high thickness polyurethane foam injected between the cover and tank giving excellent heat retention properties
• The electrical heating element is made of Incoloy®
• Double electrical heating
• Produces hot water from the electric element, that is fitted with an adjustable safety thermostat
• Relief/non-return vale that allows discharging of the water heater in case of disuse
• Temperature control panel
• Adjustable levelling feet
• Integrated mounting brackets
• Mounting flexibility

Quick S.p.A. is a leader company in Italy and worldwide in manufacturing accessories for sailing boats and yachts. It begins in the early 80s as an initiative by some professionals with training and expertise acquired in the Comar shipyard, manufacturer of the legendary Comets. In the same context, made of names destined to become famous, a small company named PM Marina acquired Quick in 1992, and this very association, solid and innovative, will guide the company towards important goals and the development of a wide array of products, from windlasses to thrusters, from battery chargers to nautical boilers, from remote controls to navigation lights, to the Marine Lighting Quick Division, started in 2007

In 2011, after the experience acquired in the lighting technology was launched

Quick S.p.A., is a point of reference both for quality of products and technological resources able to offer a complete service, from the design to the finished product. Quick was able to manage its own growth by making important decisions such as, for example, the integration of an engineering system, and we are talking about CATT, acquired in 2003. The operative facility, which manufactures mechanical processes and creates molds for plastic materials, is organized with technologically advanced machinery including CAD-CAM stations for designing, different latest generation CNC centres, lathes and other precision devices.

Video overview of Quick Spa

About Quick

In 1982 Michele Marzucco, together with his business partner Alfonso Peduto, started his experience in the nautical sector at the Comar shipyard, which was renewed for Comet products. Very quickly the two business partners, driven by a great entrepreneurial spirit, founded a small company called PM Marina which was specialized in sales, installation and after-sales management of marine electronics, refrigeration, air conditioning, heating and electrical systems.

Almost ten years later, in 1992, PM Marina acquired Quick and thanks to this merger, the company began to achieve important goals. Since 2006 Quick Spa has been in the United States as Quick USA INC, which develops commercial and technical assistance activities for the USA. Quick Spa is also present in the UK with Quick UK, founded in 2018.

In 2018 Michele Marzucco started a new important challenge, acquiring the shareholder’s shares and opening the company to his two sons, Chiara and Carlo.

In 2019 Quick Spa launched an important expansion of its workforce in Italy and abroad, employing managerial figures with international professional experience.

Quick Spa, an international leader in the production of nautical equipment, designs, produces and engineers all its products in the Italian Headquarters in Ravenna.

Quick Headquarters, expanded in 2016, is now over 19,000 square meters.
It is located in the countryside near Ravenna and it includes the general management and staff, different production departments and all the laboratories of research, development and design.

Quick Spa holds also an engineering factory where there is the most consistent machinery of the whole company.
CATT srl has been acquired in 2003 and it is close to the Headquarters.
This operating structure has allowed Quick Spa to raise products’ quality, providing custom products meeting different customers’ needs, to create new articles according to customer-specific requests and boast with the entirety of the products made in Italy.
CATT is characterized by CAD-CAM design stations, several last-generation CNC centres, lathes and precision equipment.

Since 2006 Quick Spa has been in the United States as Quick USA INC, which develops commercial and technical assistance activities for the USA. Quick Spa is also present in the UK with Quick UK, founded in 2018.

In 2018 Quick Spa achieved a turnover of 35 million euros and in 2019 it expects a positive trend, equal to approximately 12%. The company has more than 200 employees, of which 160 are in the Italian headquarters.

Quick Spa offers different product ranges thanks to the great experience and important acquisitions that allowed increasing its portfolio and know-how during the years.
After the introduction of its first windlass called Aries, Quick Spa developed relationships with different companies, first of all Nautic Boiler (calorifiers), the Italian branch of Atwood acquired in 1998.

In the following years Quick Spa expanded its business acquiring Scotti, a well-known company specialized in marine lighting founded in 1945, and CATT, a company with over 20 years of experience in mechanical processing and plastic manufacturing.

Then in 2007, Quick Spa acquired Sigmar Marine SRL, specialized in water heaters.

Finally, in 2016 with the latest acquisition of Item Mare business unit, MC2 Marecalmo brand and its know-how, Quick Spa transferred the gyroscopic stabilizers production to its facilities and applied technical improvements to provide greater efficiency and reliability.

Through these important mergers and acquisitions, today Quick Spa can offer different ranges of products.

Quick Nautical Equipment includes anchoring and mooring systems, energy supplies, a large range of water heaters and accessories.

Quick Marine Lighting includes the whole range of lighting products, from courtesy lights to underwater lights.

MC² Quick Gyro series includes gyro stabilizer models from X2 to X56 for boats up to 250 tons. MC² Quick Gyro stabilizers can reduce boat roll up to 95% and they are very effective at speed as well as at anchor.
They result to be compact, easy to install and the maintenance can be performed on board.
MC2 Quick Gyro stabilizers, developed by Quick, are equipped with a mass revolving on a horizontal axis.
A peculiarity that reduces significantly mechanical stress, produces less friction and therefore needs lower heat output.
The system is air-cooled; therefore, it does not require water pumps or seawater inlets, like the water-cooled systems do.
