The round A60 multiblade Marine Fire Damper is designed for use on marine vessels to protect the integrity of fire-rated bulkheads and decks

Please note: The dimensions selected are the internal dimensions less the flange

This item is made to order so a manufacturing time of 2-4 weeks needs to be expected

Material

Actuator type

Diameter ø

Thickness

Clear

SKU: Circular Marine A60 Fire damper MED & USCG Categories: 316 Stainless, A60 Marine Fire Dampers, ABS Certified, ATEX Certified, BSB Dampers, CE Certified, Fan Accessories, Fire Dampers, Lloyds Register certified, MED Certified, Ocean Footprint, SOLAS Certified, UL Certified Tags: A60, EN1751, IMO Fire Test Procedures Code, Lloyds Register, Marine Equipment Directive, Marine Equipment Directive 2014/90/EU, MED, multiblade Marine Fire Damper, SOLAS, USCG

Description

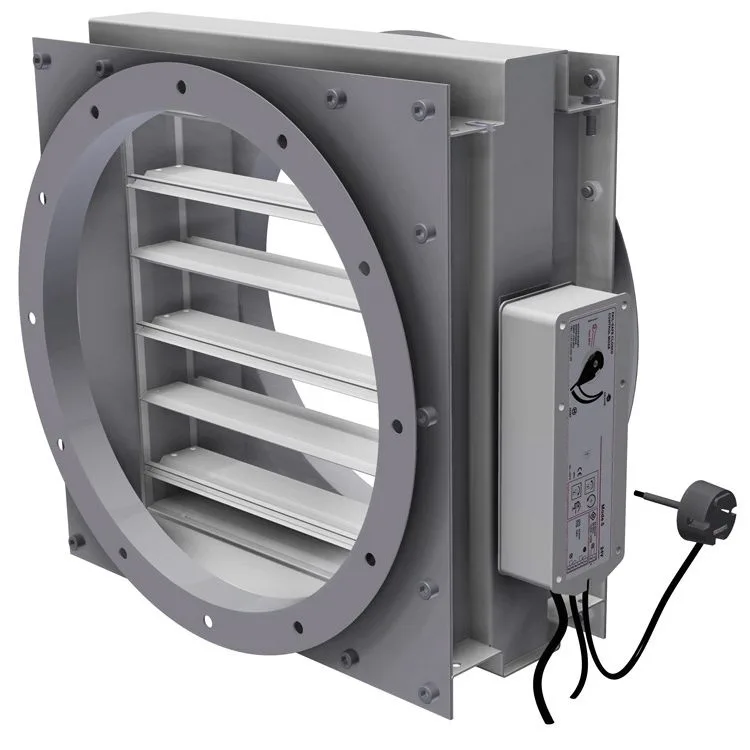

The Circular MED Approved multiblade Marine A60 Fire damper is designed for use on marine vessels to protect the integrity of fire-rated bulkheads and decks

Each Fire damper is controlled by an electrical failsafe spring return actuator combined with a thermoelectric tripping device (thermal fuse) and volt free contacts for remote status indication. They are very useful for use in engine room ventilation systems where large volumes of air are required in normal operations, however, in the case of a fire need to become a closed fire barrier to protect passengers and crew whilst help arrives or action is taken to bring a fire under control.

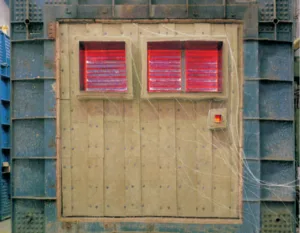

A60 dampers under test conditions — **An image showing the testing of the A60 dampers**

The benefit of adding 60 minutes of fire protection to an engine room or another area susceptible to fire, is that it could be sufficient time to evacuate a vessel, or alternatively wait until help can arrive. In the situation of fire being detected the louvres or fins of the damper will automatically close and create a fire break and offer a life saving additional time to evacuate.

The dampers are easy to install and maintain, they operate automatically and quite literally can save lives!

Fire dampers are fire protection products used in heating, ventilation, and air conditioning (HVAC) ducts to prevent the spread of fire inside the ductwork through fire-resistance rated bulkheads and decks. When a rise in temperature occurs, the fire damper closes, usually activated by a thermal element which melts at temperatures higher than ambient but low enough to indicate the presence of a fire, allowing springs to close the damper blades. The fire dampers can also close following receipt of an electrical signal from a fire alarm system utilising detectors remote from the damper, indicating the sensing of heat or smoke in the building occupied spaces or in the HVAC duct system.

Marine A60 fire dampers are passive fire protection products used in the marine industry to prevent the spread of fire from inside the engine room or other fire-rated space through fire-resistance-rated walls and floors. Fire/smoke dampers are similar to fire dampers in fire-resistance rating, and also prevent the spread of smoke inside the vessel. When a rise in temperature occurs, the fire damper closes, usually activated by a thermal element which melts at temperatures higher than ambient but low enough to indicate the presence of a fire, allowing springs to close the damper blades. Fire dampers can also close following receipt of an electrical signal from a fire alarm system utilising detectors remote from the damper, indicating the sensing of heat or smoke in the vessel occupied spaces or in the HVAC system

Fully compatible with control systems

24 volt DC and 230-volt AC actuator options (24V default)

Marine fire damper for HVAC systems onboard marine vessels
MED (Marine Equipment Directive 2014/90/EU) certified for A60 fire performance
USCG Approved
SOLAS Compliant
Lloyds Register Certified to IMO Fire Test Procedures

The A60 damper can be used where the maximum system pressure is 2000 Pa and duct velocities do not exceed 20 m/s
The A60 Marine Fire Damper has been tested in accordance with EN1751 with case leakage conforming to classes A, B and C and closed blade leakage to class B
The A-60 Marine Fire Damper is suitable for both vertical and horizontal applications, with airflow in either direction
MED (Marine Equipment Directive 2014/90/EU) certified for A60 fire performance
Conforms to Commission Implementing Regulation (EU) 2018/773

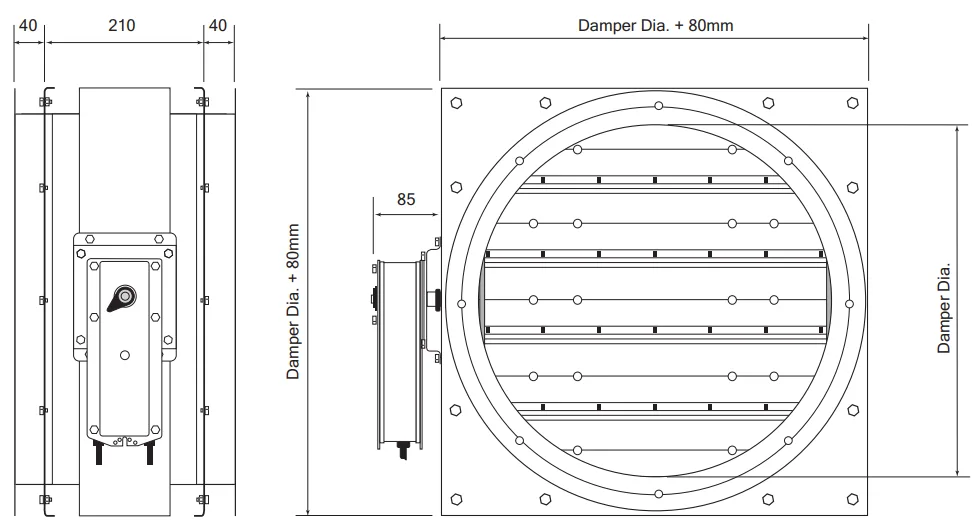

Circular Damper Fixing Hole Detail Number of holes equally spaced on PCD

**Circular A60 Fire damper MED Approved Diameter Hole detail**

Testing, Approvals and Conformities

Logo for the Wheelmark MED Logo

Tested and certificated for 60 minutes
Marine Equipment Directive (MED) 96/98/EC
Lloyds Register Approval to IMO Fire Test Procedures Code, Annex 1, Part 3, for Class AO, A15, A30 and A60 Division bulkheads and decks. In compliance with the appropriate Lloyds Register Rules and Regulations and with the International Convention for the Safety Of Life At Sea (SOLAS). Certificate No. SAS F180117/M1
USCG (United States Coast Guard). Cert. No. MED 1850080/M1
Corrosion Tested to BSEN 60068-2-52.
Vibration Tested to BS EN 60068-2-6
EC Type Examination (Module B) Certificate No. MED:1850080/M1
EC (Module D) Certificate of Conformity – MED 1850123
Certificate of Fire Approval SAS F180117/M1
ISO 9001 Certificate No. 828

Additional information

Material	316 Stainless, Galvanised
Actuator type	24V DC, 110V AC, 230V AC, ATEX(Ex), Pneumatic
Diameter ø	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm
Thickness	1.2mm, 2mm, 3mm

Operation and Maintenance

Testing

Two levels of testing exist

Routine testing Monthly, or in accordance with a maintenance programme, release and reset damper (via a control system or ETR test switch). Check remote indication or visual check of mechanical pointer as appropriate
Visual check at damper At commissioning and at least once a year, check damper operation by removing and re-applying power to the actuator. (via ETR test switch). Visually check blades for damper closed and open positions. Prove remote indication if applicable.

Routine Maintenance

Depending upon environmental conditions, each damper will merit its own cleaning regime. Particularly hostile areas may require monthly cleaning and lubrication.

‘Frequency of maintenance’ should be determined by collecting historical data from previous visits, and for this reason, commence maintenance programmes at very frequent intervals. Dampers in ‘Dry Filtered Air’ require very limited maintenance. Using Duck Oil (recommended lubricant, or similar equivalent), clean all exposed surfaces, using a cloth. Remove all traces of surface staining, as this will deteriorate further causing deeper material corrosion.

If the damper is stiff to operate, lubricate blade ends and open and close damper successively until the damper moves with ease. (This may necessitate the removal of the actuator and operating the blades manually by the drive shaft). Refit actuator, and retest. Clean off excessive lubricant
