Quick Heroes Series HR5 Horizontal Windlasses
Quick Heroes Series HR5 Horizontal Windlasses
Description
Quick Heroes Series HR5 Horizontal Windlasses
- Set still horizontal on-deck
- Painted aluminium base (RAL 9010)
- With or without a bell
- Built-in teleructors
- Built-in sensor and magnet for the counter
- Ratchet-operated manual emergency recovery system
- Manual chain free-fall system
- Mechanical headband safety brake
- IP66 tin engine
For boats from 12 to 24 meters (39 – 79 ft)

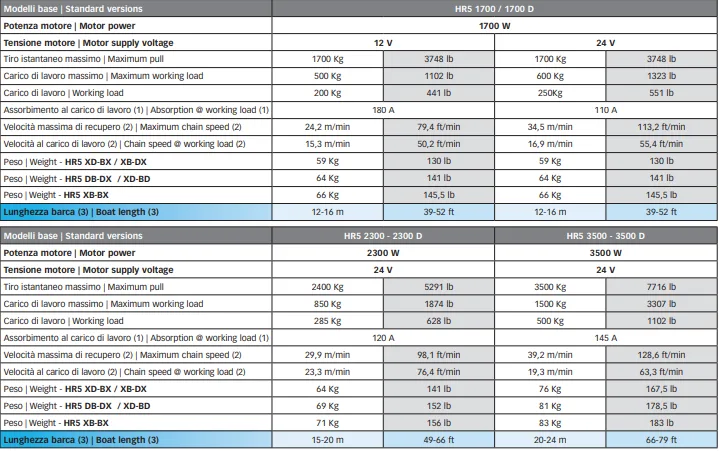

| Heroes | 1700 W | 12 – 16 m | 39 – 52 ft |
| Heroes | 2300 W | 15 – 20 m | 49 – 66 ft |
| Heroes | 3000 W | 20 – 24 m | 66 – 79 ft |
Available on demand with hydraulic engine (HR5 Hydro)
 | Barbotin and Bell | 150 mm |
| Gypsy | 10 mm – 3/8″ | 12/13 mm | 14 mm | |
| Chain | 10 mm | 12 mm | 13 mm | 14 mm |
| ISO (P.30) | Iso | DIN 766 | DIN 766 | |
Additional information
| Chain Size | 10mm, 12mm, 14mm |
|---|---|
| Wattage | 1700W, 2300W, 3500W |
| Voltage | 12V, 24V |
| Working Load | 180A, 110A, 120A, 145A |
| Gypsy | Left, Right |
