Quick Eagle Series E1 Horizontal Windlasses
£1,160.97 – £1,349.17
Quick Eagle Series E1 Horizontal Windlasses
Description
Quick Eagle Series E1 Horizontal Windlasses
- Set still horizontal
- Anodized aluminium base in hard oxide
- With and without bell
- Built-in sensor and magnet for the counter
- Manual chain free-fall system
- IP66 tin engine
Easy installation thanks to the vertical engine that allows the installationfrom deck, the eagle still sails mount quickly and easily.

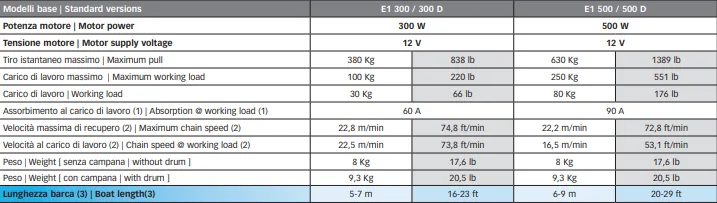

| Eagle | 300 W | 5 – 7 m | 16 – 23 ft |
| Eagle | 500 W | 6 – 9 m | 20 – 29 ft |
The indication may vary depending on the type of boat and anchor-rode
 |
Barbotin and Bell | 90 mm |
| Gypsy | 6 mm | |
| Chain | 6 mm | 6 mm |
| DIN 766 | Iso | |
Additional information
| Chain Size | 6mm, 8mm, 5/16", 10mm, 3/8" |
|---|---|
| Wattage | 300W, 500W |
| Voltage | 12V |
| Boat Length | 5M-7M, 6M-9M |
| Working Load | 60A, 90A |
| With Drum | Yes, No |
